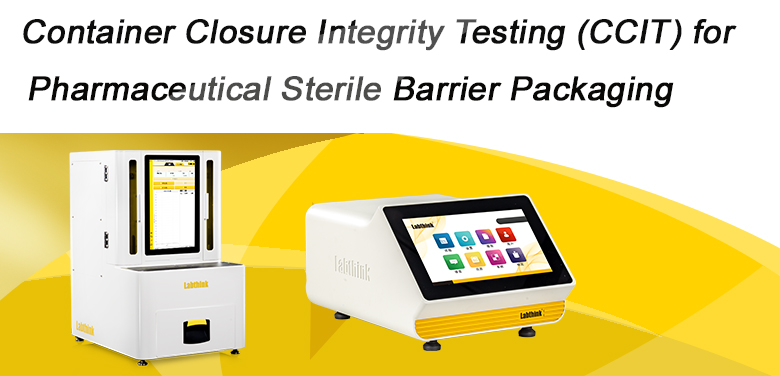

CCIT testing is used to evaluate pharmaceutical packaging such as vials, syringes, auto injectors and IV bags for sterile barrier integrity breaches. Refer to test mothod of container closure integrity testing described in USP <1207>, Labthink developped a highly sensitive leak detection system for various types of liquid-filled packaging including, but not limited to pre-filled syringes, vials, cartridges and ampoules. Labthink C690 series leak detectors utilize non-destructive, non-invasive, and provides a high level of repeatability and accuracy.

Benefits:

• Non-destructive, non-invasive, no sample preparation
• High level of repeatability and accuracy
• Dual methods of vacuum decay and pressure decay
• can facilitate continuous testing of 20 to 120 samples.
• Advanced microflow automatic flow control technology
• Microleaks detection(less than 3um)

Batch Testing

• Equipped with fully-automatic gravity fed sample feeder, which is Labthink’s latest scientific and technological achievement that can facilitate continuous testing of 20 to 120 samples.
• A & B dual-channel design can test samples of two different specifications simultaneously.
• The target vacuum degree can be set by the operator to meet testing requirements of different samples.
• Dual methods of vacuum decay and pressure decay provide the flexibility to accommodate various types of package samples.

Precise Data

• Advanced pressure detection technology, using world renowned components for data stability which is not affected by ambient environment.
• Advanced microflow automatic flow control technology that can accurately simulate different sizes of leakage holes without manual adjustment.
• Both the differential pressure transducer and flow meter are traceable to NIST.
• The system can achieve a higher test repeatability of ±1um.

For more information, please https://en.labthink.com/en-us/product/C690H-Nondestructive-Package-Leak-Detector.html or contact us  via info@labthink.com
